Short description:
- simulation EPROM 2764..29080
- 1M Byte (8M bit) / sec download speed
- Supports 8bit data bus by itself
- Supports EeRom-8U without outside electric power supply
- Uses 1MB high speed memory for proper emulation : 12ns high speed SRAM
- High speed USB interface (Supports Plug + Play)
- Supports hex (Intel/Motorola type), binary file format
- Safety circuit against inverse insertion
- easy to use control program, Windows 98/Me/2000/XP-32bit compatible
- 1 years warranty
EeRom-8U ROM Emulator is aimed at developers who focus on making ROM based programs
and data including embedded systems, BIOS, video games, robotics, printer drivers, graphic controller, postscript
interpreters, character font libraries, and other ROM based application. In general, the emulator is used during
program and data developing period to eliminate the frustration of repeated EPROM burn-erase cycles. EeRom-8U ROM
Emulator easily plugs in place of the ROM through the emulators target adapter.
Other ROM Emulators can emulate only EPROM. But EeRom-8U ROM Emulator can emulate
many types of memories (EPROM, Flash-ROM, EEPROM, NVRAM) currently used. So EeRom-8U ROM Emulator can be called a
memory emulator. Also EeRom-8U can properly operate with users board using 8bit/16bit/32bit data bus. EeRom-8U ROM
Emulator adopts USB interface. This helps the user to have faster communication speed than the parallel port. From
this, the user can enormously reduce the developing time and adopt high speed SRAM(12ns) for matching well with high
speed RISC and CISC CPU. Therefore both professional and novice program developers will find that EeRom-8U ROM Emulator
can be an exceptional valuable tool.
 Back to top
- High Speed USB Interface (Supports Plug & Play)
- 1M Byte (8M bit) / sec. download
Speed
- Supports 8bit data bus by itself
- Uses 1MB high speed memory for proper emulation : 12ns high speed SRAM
- Supports EeRom-8U without outside electric power supply
- Convenient software environment: supports Windows/98/ME/2000/XP-32bit
- Supports hex (Intel/Motorola type), binary file format
- Safety circuit against inverse insertion
SYSTEM Requirements
Target systems
Your target board requires the following memory type for proper
emulation with EeRom-8U. The basic EeRom-8U unit supports 8Mbits with 45NS memory.
|
|
EeRom-8U
For
supporting EEU100s needed
|
Software Einstellungen
for
Target Memory
( Memory Type )
|
|
|
EPROM
DATEN : 8BIT
|
27C64
|
EPROM (2764)
|
8K
|
|
27C128
|
EPROM (27128)
|
16K
|
|
27C256
|
EPROM (27256)
|
32K
|
|
27C512
|
EPROM 27512
|
64K
|
|
27C010
|
EPROM 27010
|
128K
|
|
27C020
|
EPROM 27020
|
256K
|
|
27C040
|
EPROM 27040
|
512K
|
|
27C080
|
EPROM 27080
|
1M
|
|
EEPROM
DATEN :
8BIT
|
2864
|
EEPROM (2864)
|
32K
|
|
28512
|
EEPROM (28256)
|
64K
|
|
FLASH ROM
DATEN :
8BIT
|
29512
|
FLASH (29512)
|
64K
|
|
29010
|
FLASH (29010)
|
128K
|
|
29020
|
FLASH (29020)
|
256K
|
|
29040
|
FLASH (29040)
|
512K
|
|
Unterstützte
Sockel
|
PLCC 32 Pin;
ADP28:32PLCC-TO-28DIP, ADP32:32PLCC-TO-32DIP)
|
|
Memory Type
|
Size (Bytes)
|
Supported Memory
|
|
2764
|
8K
|
2764/A, 27C64, 27HC64
|
|
27128
|
16K
|
27128/A/B/D/DI, 27C128
|
|
27256
|
32K
|
27256, 27C256, 27H256,
27BV256, 27LV256
|
|
27512
|
64K
|
27512/AS, 27C512, 27LV512
|
|
27010
|
128K
|
27C010, 27H010, 27HB010, 27LV010/A/L
|
|
27020
|
256K
|
27C020, 27BV020, 27LV020, 27LC020, 27SF020, 27E020
|
|
27040
|
512K
|
27040, 27C040/Q, 27BV040, 27LV040
|
|
27080
|
1M
|
27C080, 27LV080
|
|
2864
|
8K
|
2864A/AE/B/BE, 28C64/A/AX, 28HC64/B, 28PC64/E, 28BV64,
28LV64/B
|
|
28256
|
32K
|
28C256, 28HC256
|
|
29512
|
64K
|
29C512, 29EE512/A, 29SF512
|
|
29010
|
128K
|
29010/L/V, 29C010A, 29F010/A/B, 29EE010/A,29SF010
|
|
29020
|
256K
|
29C020, 29EE020/A
|
|
29040
|
512K
|
29040/A/L/AL/V, 29F040/B
|
|
29080
|
1M
|
Special Port
is needed
|

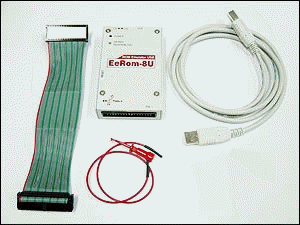

EeROM-8U package contains
Accessory:
Converter, POD
Prices: EeROM-8U € 306,00
Programmer price also includes:
The information in this document are subject to change without notice.
