assigned for obsolete PLD devices, e.g. Altera EPM5032/5032A,EPM5064/5064A,
Cypress CY7C344/344B, CY7C343/343B, Philips/Signetics
PLS100/101/104/104A/105/105A, PLUS153
operation (mechanical) life of ZIF socket -
25.000 actuations
| Ord. no. |
70-0424 |
| Socket |

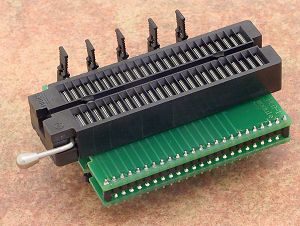

ZIF DIL48, for 300 and 600mil
devices |
| Bottom |
2 rows, 2x24 pins square, 0.6x0.6mm, row spacing 600mil |
| Class |
Specialized |
| Subclass |
PLD |
|
|
|
Converter manual
- Protect the pins of adapter and adapter's ZIF
socket from contamination. Don't touch the pins with
bare hands. Any dirt and/or fat may cause errors
during programming.
- Proceed with care! Incorrect insertion of
adapter in programmer's ZIF socket or device in
adapter's ZIF socket may lead to programmed device
damage.
- Visually check the placement of adapter in
programmer's ZIF socket. If everything looks OK, the
device is ready for programming.
- Be careful, because the
incorrect insertion of module to the programmer ZIF
socket or device to the module ZIF socket can damage
the programmed device.
- When you finish work with adapter, remove it from
the device programmer ZIF socket.
- Operation conditions: operating temperature 5°C
-
40°C (41°F - 104°F), operating humidity 20%...80%,
non condensing.
Accepted package(s)
| DIP28 |
 |
|
|
| DIP28 |
 |
|
|
