Converter

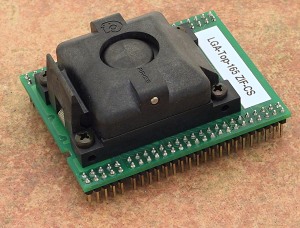

LGA-Top-165 ZIF-CS

  • top board of LGA converters
  • ZIF socket accepts many variations of LGA packages, that differ in body thickness.
  • The picture at Accepted package(s) section shows the range of all dimensions of LGA packages, which are accepted by this LGA-Top board.
  • operation (mechanical) life of ZIF socket - 500.000 actuations
  • socket: ZIF LGA52, ClamShell type
  • bottom: 8+3 rows, 8x25+3x20 pins, square, 0.6x0.6mm
  • Order no.: 70-1352
  • Price: € 723,00

Converter manual

  • For work with LGA device it is necessary put together LGA-Top-165 ZIF-CS with some LGA-Bottom-x board according to the information provided by PG4UW software.
  • Do not directly touch the pins of the converter, because dirt may cause errors during programming of device.
  • For handling with the device we recommended to use a vacuum pipette pick up tool.
  • The picture show, how to put together the LGA-Top-x ZIF-CS and LGA-Bottom-x boards to have complete LGA converter




Accepted package(s)

BGA package



NAME

 SYMBOL MIN NOM MAX

Profile

 A 0.9 0.95 1

Ball Height

 A1

Ball Thickness

 A2 - - 1

Ball Diameter

 b 0.65 - 1.05

Body Size

 D 16.9 17 17.1

Body Size

 E 11.9 12 12.1

Ball Pitch

 e - 1 -

Ball Array D

 GD - - -

Ball Array E

 GE - - -

NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1

Ball Height

 A1

Ball Thickness

 A2 - - 1

Ball Diameter

 b 0.65 - 1.05

Body Size

 D 16.9 17 17.1

Body Size

 E 11.9 12 12.1

Ball Pitch

 e - 1 -

Ball Array D

 GD - - -

Ball Array E

 GE - - -
