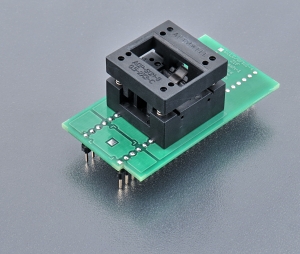

DIL8/QFN8-4 ZIF SFlash-1
Order No.: 70-4042

specialized adapter for Serial Flash devices in 2x3mm UDFN/UFDFPN/USON/VDFN packages with 8-pins
designed for TurboMode
operation (mechanical) life of ZIF socket - 10.000 actuations
supported from PG4UW software version 3.25q

Ord. no. 70-4042
Socket ZIF QFN8, open top type
Bottom 2 rows, 2x24 pins, square, 0.6x0.6mm, rows spacing 600mil
Class Specialized
Subclass EPROM/Flash


Order no.: 70-4042
Price:        € 241,00

Converter manual

  • Protect the contacts of adapters's connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert adapter into programmer's ZIF socket. If you are in doubts about orientation of the adapter in programmer's ZIF socket, there is a rule of thumb - orientation of adapter's name text is the same as orientation of the text on the top of programmer.
  • Visually check the placement of adapter in programmer's ZIF socket.
  • Push the cover of adapter's ZIF socket (the topmost movable part) to open the socket. Insert the device into adapter's ZIF socket. Correct position of programmed device in adapter's ZIF socket is indicated by picture near (usually on left above) the adapter's ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned. Then release adapter's ZIF socket.
  • The cover must be fully actuated (depressed) before inserting a device into the socket. If device is inserted into only partially opened ZIF socket, then - after releasing of cover – device pins might get damaged.
  • Do not press on device while inserting it and/or releasing the cover.
  • Visually check the placement of programmed device in adapter's ZIF socket. If everything looks OK, the device is ready for programming.
  • To take out the device from adapter, push the cover of adapter's ZIF socket and remove the device.
  • When you finish the work with adapter, remove it from programmer's ZIF socket.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

QFN8
