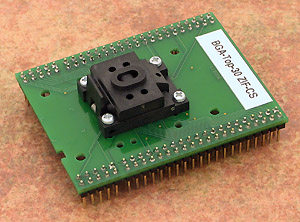

top board of BGA adapters
used
ZIF socket may accepts one or more variants of supported package, different in
ball diameter, ball high and/or body thickness.
The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board
operation (mechanical) life of ZIF socket - 500.000 actuations
| Ord. no. |
70-0348 |
| Socket |
ZIF BGA88, (depopulated array of
(66) spring probes) ClamShell type |
| Bottom |
4 rows, 4x25 pins square, 0.6x0.6mm |
| Class |
BGA/LGA |
| Subclass |
BGA-Top |
|
 |
|
Adapter manual
- Protect the pins of adapter and adapter's ZIF
socket from contamination. Don't touch the pins with
bare hands. Any dirt and/or fat may cause errors
during programming.
- Usage of
vacuum pick up
tool is expected for device handling.
- Proceed with care! Incorrect insertion of
adapter in programmer's ZIF socket or device in
adapter's ZIF socket may lead to programmed device
damage.
- For work with BGA device it
is necessary put together BGA-Top-30 ZIF-CS with
some BGA-Bottom-x board according to the information provided by PG4UW software.
- The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
- Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
- For handling with the device we recommended to use a
vacuum pick up
tool.
Accepted package(s)
| BGA package |
 |
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
0.76 |
- |
1 |
|
Ball Height
|
A1 |
0.16 |
- |
- |
|
Body Thickness
|
A2 |
0.6 |
0.66 |
0.72 |
|
Ball Diameter
|
b |
0.26 |
0.31 |
0.36 |
|
Body Size
|
D |
- |
6 |
- |
|
Body Size
|
E |
- |
5 |
- |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
11 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
0.73 |
|
Ball Height
|
A1 |
0.16 |
0.21 |
0.26 |
|
Body Thickness
|
A2 |
- |
0.436 |
- |
|
Ball Diameter
|
b |
0.27 |
0.32 |
0.37 |
|
Body Size
|
D |
5.9 |
6 |
6.1 |
|
Body Size
|
E |
4.9 |
5 |
5.1 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
11 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
- |
0.75 |
|
Ball Height
|
A1 |
0.16 |
0.21 |
0.26 |
|
Body Thickness
|
A2 |
0.41 |
- |
- |
|
Ball Diameter
|
b |
0.25 |
0.3 |
0.35 |
|
Body Size
|
D |
5.9 |
6 |
6.1 |
|
Body Size
|
E |
4.9 |
5 |
5.1 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
11 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
0.53 |
0.63 |
0.73 |
|
Ball Height
|
A1 |
0.14 |
0.2 |
0.26 |
|
Body Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.27 |
0.32 |
0.37 |
|
Body Size
|
D |
5.92 |
6 |
6.08 |
|
Body Size
|
E |
4,92 |
5 |
5.08 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
11 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
0.636 |
0.73 |
|
Ball Height
|
A1 |
0.14 |
0.2 |
0.26 |
|
Body Thickness
|
A2 |
0.41 |
- |
- |
|
Ball Diameter
|
b |
0.25 |
0.3 |
0.35 |
|
Body Size
|
D |
5.92 |
6 |
6.08 |
|
Body Size
|
E |
4.92 |
5 |
5.08 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
11 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
