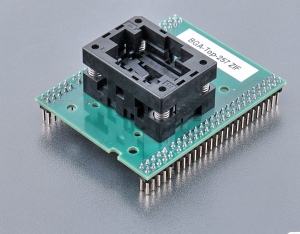

BGA-Top-257 ZIF
Order No.: 70-2345
|
top board of BGA adapters
used ZIF socket may accept one or more variants
of supported package, different in ball diameter, ball high and/or body
thickness, see section Accepted package(s)
operation (mechanical) life of
ZIF socket - 10.000 actuations
supported from PG4UW software version 3.15g
| Ord. no. |
70-2345 |
| Socket |
ZIF BGA48, open top type |
| Bottom |
4 rows, 4x 25 pins, square, 0.6x0.6mm |
| Class |
BGA/LGA |
| Subclass |
BGA-Top |
|
|
|
|
|
Order no.: 70-2345
Price: €
355,00
|
|
Converter manual
-
For work with BGA device it is necessary put
together BGA-Top-257 ZIF (a) with some BGA-Bottom-x
board according to the information provided by PG4UW software.
-
The top cover must be fully actuated (depressed) before inserting a package into the socket. If
the chip is inserted into only partially opened ZIF socket, then - after releasing of top - the
tweezer contact might bend and if more times done by this way also tweezer contact can be broken.
- Do not directly touch the pins of
the converter and converter ZIF socket, because dirt
may cause errors during programming of device.
- Operation conditions: operating temperature 5°C ÷
40°C (41°F ÷ 104°F), operating humidity 20%..80%,
non condensing.
- For handling with the device we
recommended to use a
vacuum pick up
tool.
Accepted package(s)
|
BGA
package
|
 |
|
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
0.53 |
0.63 |
0.73 |
|
Ball Height
|
A1 |
0.15 |
0.2 |
0.25 |
|
Body Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.25 |
0.3 |
0.35 |
|
Body Size
|
D |
5.9 |
6 |
6.1 |
|
Body Size
|
E |
3.9 |
4 |
4.1 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
1 |
- |
|
Ball Array E
|
GE |
- |
67 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
- |
0.636 |
0.73 |
|
Ball Height
|
A1 |
0.14 |
0.2 |
0.26 |
|
Body Thickness
|
A2 |
- |
- |
- |
|
Ball Diameter
|
b |
0.27 |
0.32 |
0.37 |
|
Body Size
|
D |
5.92 |
6 |
16.08 |
|
Body Size
|
E |
3.92 |
4 |
4.08 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
11 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
NAME
|
SYMBOL |
MIN |
NOM |
MAX |
|
Profile
|
A |
0.76 |
0.86 |
1 |
|
Ball Height
|
A1 |
0.16 |
- |
- |
|
Body Thickness
|
A2 |
0.6 |
0.66 |
0.72 |
|
Ball Diameter
|
b |
0.26 |
0.31 |
0.36 |
|
Body Size
|
D |
5.92 |
6 |
6.08 |
|
Body Size
|
E |
3.92 |
4 |
4.08 |
|
Ball Pitch
|
e |
- |
0.5 |
- |
|
Ball Array D
|
GD |
- |
1 |
- |
|
Ball Array E
|
GE |
- |
6 |
- |
|
|
