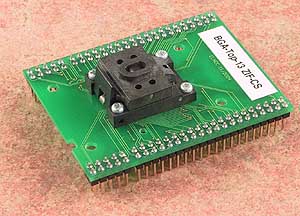

BGA-Top-13 ZIF-CS
Order No.: 70-0267

top board of BGA adapters
used ZIF socket may accepts one or more variants of supported package, different in ball diameter, ball high and/or body thickness. The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board
operation (mechanical) life of ZIF socket - 500.000 actuations

Ord. no. 70-0267
Socket ZIF BGA48, Clamshell type
Bottom 4x25 pins square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top



Order no.: 70-0267
Price:        €

Adapter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • For work with BGA device it is necessary put together BGA-Top-13 ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package



NAME

 SYMBOL MIN NOM MAX

Profile

 A - - 1.2

Ball Height

 A1 0.25 0.3 0.35

Body Thickness

 A2 - -

Ball Diameter

 b 0.3 0.4 0.5

Body Size

 D 8.8 9 9.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 0.95 1.05 1.2

Ball Height

 A1 0.28 0.38 0.48

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.4 0.45

Body Size

 D 8.8 9 9.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 0.95 1.05 1.2

Ball Height

 A1 0.28 0.38 0.48

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.45 0.55

Body Size

 D 8.8 9 9.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -

NAME

 SYMBOL MIN NOM MAX

Profile

 A 0.98 1.05 1.2

Ball Height

 A1 0.28 0.38 0.48

Body Thickness

 A2 - - -

Ball Diameter

 b 0.35 0.45 0.55

Body Size

 D 8.8 9 9.2

Body Size

 E 7.8 8 8.2

Ball Pitch

 e - 0.8 -

Ball Array D

 GD - 8 -

Ball Array E

 GE - 6 -
