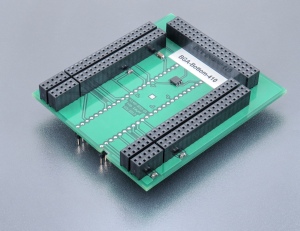

BGA-Bottom-410
Order No.: 70-4248

bottom board of BGA adapter, assigned for STMicroelectronics STM32F7xx devices in BGA100 package, matrix 10x10
supported from PG4UW software version 3.31h

Ord. no. 70-4248
Connection to BGA-Top-X 8x25 + 3x20 sockets for wire wrap pin
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm,  row spacing 600mil
Class BGA/LGA
Subclass BGA-Bottom

Order no.: 70-4248
Price:        € 103,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • For work with BGA device it is necessary put together BGA-Bottom-410 with some BGA-Top-x board according the information provided by PG4UW software.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
