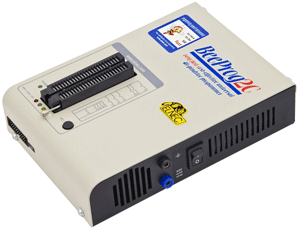

BeeProg2C

Cost effective version of BeeProg2 programmer (differences see below). If you need to program some of the mentioned devices, see BeeProg2 programmer.

Extremely fast universal USB interfaced programmer.


Short description:

  • supported devices from manufacturers by SW version from
  • extremely fast programming, one of the fastest programmers in this category. Programs 64-Mbit NOR Flash memory less than 9 seconds and 1Gbit NAND Flash less than 70 sec.
  • 48-pins powerful pindrivers, no adapter required for any DIL devices
  • connector for in-circuit programming (ISP)
  • connection to PC: USB (up to 480 Mbit/s)
  • after upgrade to BeeProg2, also high-speed IEEE 1284 (ECP/EPP) printer-port (LPT) interface is available
  • comfortable und easy to use control program, works with all versions of MS Windows (from Windows XP to Windows 11 32-bit and 64-bit)
  • remote control software
  • Multiprogramming possible by attaching more programmers to one PC
  • approved by CE laboratory to meet CE requirements
  • warranty - 3 years

Optional accessories:

 Back to top

Features

GENERELL

BeeProg2C is USB-compatible, MS Windows (from Windows 2000 to Windows 8 32-bit and 64-bit) based ELNEC universal programmers, built to meet the strong demand of the small manufacturing and developers community for the fast and reliable universal programmer.

BeeProg2C programmer have hardware identical with the BeeProg2 programmer, the differences are only in software. BeeProg2C have next limitations against BeeProg2:

  • unsupported obsolete bipolar chips (PROMs and PLDs)
  • unsupported obsolete EPROMs with programming voltage 21V and above
  • unsupported obsolete 2708 EPROMs
  • unsupported obsolete microcontrollers MCS48 series
  • unsupported obsolete microcontrollers 8751/8752 with programming voltage 21V and above
  • LPT port connection usage is disabled in software

BeeProg2C programmer can be any time upgraded to BeeProg2 using BeeProg2C to BeeProg2 upgrade kit

Supports all kinds of types and silicon technologies of today and tomorrow programmable devices without family-specific module. You have freedom to choose the optimal device for your design. Using built-in in-circuit serial programming (ISP) connector, the programmer is able to program ISP capable chips in circuit.

BeeProg2C isn't only a programmer, but also a tester of TTL/CMOS logic ICs and memories. Furthermore, it allows generation of user-definable test pattern sequences.

Provides very competitive price coupled with excellent hardware design for reliable programming.

Extremely fast programming due to high-speed FPGA driven hardware and execution of time-critical routines inside of the programmer. As a result, when used in manually-operated production, this one-socket-programmer in most cases waits for an operator.

BeeProg2C interfaces with any IBM PC compatible personal computers, running MS Windows OS, through USB (2.0 HigSpeed) port. After upgrade to BeeProg2 can be also used through parallel (printer) port.

 Back to top

HARDWARE

FPGA based totally reconfigurable 48 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of socket. Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot or ground bounce for all supported devices.Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.

The programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.

The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.

Built-in protection circuits eliminate damage of programmer and/or programmed device due environment or operator failure. All the inputs of the BeeProg+ programmer, including the ZIF socket, connection to PC and power supply input, are protected against ESD up to 15kV.

BeeProg2C programmer performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.

Various socket converters are available to handle device in PLCC, JLCC, SOIC, SDIP, SOP, PSOP, SSOP, TSOP, TSOPII, TSSOP, QFP, PQFP, TQFP, VQFP, QFN (MLF), SON, BGA, EBGA, FBGA, VFBGA, UBGA, FTBGA, LAP, CSP, SCSP, LQFP, MQFP, HVQFN, QLP, QIP and other packages.

 Back to top

SOFTWARE

Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.

Standard device-related commands (read, blank check, program, verify, erase) are boosted by some test functions (insertion test, signature-byte check), and some special functions (autoincrement, production mode - start immediately after insertion of chip into socket).

All known data formats are supported. Automatic file format detection and conversion during loading of file.

The rich-featured auto-increment function enables one to assign individual serial numbers to each programmed device - or simply increments a serial number, or the function enables one to read serial numbers or any programmed device identification signatures from a file.

The software also provide a many information about programmed device. As a special, the drawing of all available packages are provided. Also explanation of chip labelling (the meaning of prefixes and suffixes at the chips) for each supported chip is available.

The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

The remote control feature allows to be PG4UW software flow controlled by other application – either using .BAT file commands or using DLL file. DLL file, examples (C/PAS/VBASIC/.NET) and manual are part of standard software delivery.

Jam files of JEDEC standard JESD-71 are interpreted by Jam Player. Jam files are generated by design software which is provided by manufacturer of respective programmable device. Chips are programmer in-ZIF or through ISP connector (IEEE 1149.1 Joint Test Action Group (JTAG) interface).

VME files are interpreted by VME Player.VME file is a compressed binary variation of SVF file and contains high-level IEEE 1149.1 bus operations. VME files are generated by design software which is provided by manufacturer of respective programmable device. Chips are programmer in-ZIF or through ISP connector (IEEE 1149.1 Joint Test Action Group (JTAG) interface).

Multiple devices are possible to program and test via JTAG chain: JTAG chain (ISP-Jam) or JTAG chain (ISP-VME).

Attaching of more BeeProg+ programmers to the same PC (through USB port) is achieved a powerful multiprogramming system, which support as many chips, as are supported by BeeProg+ programmer and without obvious decreasing of programming speed. It is important to know, there is a concurrent multiprogramming - each programmer works independently and each programmer can program different chip, if necessary.

 Back to top

Remote control support of PG4UW software

The remote control feature allows to be PG4UW software flow controlled by other application – either using .BAT file commands or using DLL file, examples (C/PAS/VBASIC/.NET) and manual are part of standard software delivery. Jam files of JEDEC standard JESD-71 are interpreted by Jam Player. Jam files are generated by design software which is provided by manufacturer of respective programmable device. Chips are programmed in-ZIF or through ISP connector (IEEE 1149.1 Joint Test Action Group (JTAG) interface).

 Back to top

CARE FOR THE CUSTOMERS

New Device Request AlgOR Service

  • It is important to remember, that a support of most of the new devices requires only a software update, because the BeeProg2C is truly a universal programmer. With our prompt service you can have new device added to the list of supported devices within hours! See AlgOR (Algorithm On Request) service and OnDemand software for details.
  • This service is almost in all cases free. Please note that we can ask customer to share the cost if development cost is too high.

Free life-time software updates

  • Most current version of Elnec programmers software with support of newly added devices is available for free here.

Free Technical support

  • Elnec provide customers technical support (WebForm/e-mail based) available usually within few hours, at the latest next working day.

Keep-Current service

  • Keep-Current service means, that ELNEC ships the latest version of programmer software and updated user documentation (Keep-Current package) to customer . The Keep-Current service is your hassle-free guarantee that you achieving the highest quality programming on ELNEC programmers, at minimal cost.

Advanced design of the JetProg programmer, including protective circuits, original brand components, and careful manufacturing and burning allows us to provide a three-year warranty on parts and labor for the programmer (limited 25.000-cycle warranty on ZIF sockets).

 Back to top

Specification

HARDWARE

Base unit, DACs

  • USB 2.0 high-speed compatible port, up to 480 Mbit/s transfer rate
  • FPGA based IEEE 1284 slave printer port, up to 1MB/s transfer rate
  • on-board intelligence: powerful microprocessor and FPGA based state machine
  • three D/A converters for VCCP, VPP1, and VPP2, controllable rise and fall time
  • VCCP range 0..8V/1A
  • VPP1, VPP2 range 0..26V/1A
  • autocalibration
  • selftest capability
  • protection against surge and ESD on power supply input, parallel port connection
  • banana jack for ESD wrist straps connection
  • banana jack for connection to ground

ZIF socket, pindriver

  • 48-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 48-pin
  • pindrivers: 48 universal
  • VCCP/VPP1/VPP2 can be connected to each pin
  • perfect ground for each pin
  • FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins
  • analog pindriver output level selectable from 1.8 V up to 26V
  • current limitation, overcurrent shutdown, power failure shutdown
  • ESD protection on each pin of socket (IEC1000-4-2: 15kV air, 8kV contact)
  • continuity test: each pin is tested before every programming operation

ISP connector

  • 20-pin male type with missinsertion lock
  • 6 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (low-voltage including) devices.
  • 1x VCCP voltage (range 2V..7V/100mA), can be applied to two pins
  • programmed chip voltage (VCCP) with both source/sink capability and voltage sense
  • 1x VPP voltage (range 2V..25V/50mA), can be applied to six pins
  • target system supply voltage (range 2V..6V/250mA)
  • ESD protection on each pin of ISP connector (IEC1000-4-2: 15kV air, 8kV contact)
  • two output signals, which indicate state of work result = LED OK and LED Error (active level: min 1.8V)
  • input signal, switch YES! equivalent (active level: max 0.8V)
 Back to top

DEVICE SUPPORT

Programmer, in ZIF socket

  • NAND FLASH: Samsung K9xxx, KFxxx, SK Hynix (ex Hynix) HY27xxx, H27xxx, Toshiba TC58xxx, TH58xxx, Micron MT29Fxxx, (ex Numonyx ex STM) NANDxxx, Spansion S30Mxxx, S34xxx, 3D-Plus 3DFNxxx, ATO Solution AFNDxxx, Fidelix FMNDxxx, Eon Silicon Sol. EN27xxx, ESMT F59xxx, LBA-NAND Toshiba THGVNxxx
  • serial NAND FLASH: Micron MT29Fxxx, GigaDevice GD5Fxxx
  • eMMC: Hynix H26Mxxxxxxxx, Kingston KE44B-xxxx/xxx, Micron MTFCxxxxxx, Numonyx Multi-chip devices: NAND+RAM, NOR+RAM, NOR+NOR+RAM, NAND+NOR+RAM
  • Multi-chip devices: NAND+RAM, NOR+RAM, NOR+NOR+RAM, NAND+NOR+RAM
  • Serial Flash: standard SPI, high performance Dual I/O SPI and Quad I/O SPI (25Bxxx, 25Dxxx, 25Exxx, 25Fxxx, 25Lxxx, 25Mxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Wxxx, 25Xxxx, 26Vxxx, 45PExx, MX66Lxxx, S70FLxxx), DataFlash (AT45Dxxx, AT26Dxxx)
  • parallel NOR Flash: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, Samsung's K8Fxxxx, K8Cxxxx, K8Sxxxx, K8Pxxxx series, ...
  • EPROM: NMOS/CMOS, 27xxx and 27Cxxx series
  •  EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, 3D Plus 3DEExxxxxxxx
  •  mDOC H3: SanDisk (ex M-Systems) SDED5xxx, SDED7xxx, MD2533xxx, MD2534xxx, Hynix HY23xxx
  • FRAM: Ramtron
  • MRAM: Everspin MRxxxxx8x
  • NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series
  • Serial E(E)PROM: Serial E(E)PROM: 11LCxxx, 24Cxxx, 24Fxxx, 25Cxxx, 30TSExxx, 34Cxxx, 34TSxx, 59Cxxx, 85xxx, 93Cxxx, NVM3060, MDAxxx series, full support for LV series, AT88SCxxx
  • Serial FRAM: Cypress(Ramtron): FM24xxxxxx, FM25xxxxxx, Fujitsu: MB85RCxxxx, MB85RSxxxx, Lapis(OKI, Rohm): MR44xxxxx, MR45xxxxx
  •  Serial MRAM: Everspin MH20xxx, MH25xxx
  •  Configuration (EE)PROM: XCFxxx, XC17xxxx, XC18Vxxx, EPCxxx, EPCSxxx, AT17xxx, AT18Fxxx, 37LVxx
  • 1-Wire E(E)PROM: DS1xxx, DS2xxx
  • PLD Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX7000AE, MAX II/G/Z, MAX V
  • PLD Lattice: ispGAL22V10x, ispLSI1xxx, ispLSI1xxxEA, ispLSI2xxx, ispLSI2xxxA, ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, LC4xxxB/C/V/ZC/ZE, M4-xx/xx, M4A3-xx/xx, M4A5-xx/xx, M4LV-xx/xx, ispCLOCK, Power Manager/II, ProcessorPM
  • PLD: Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II
  • SPLD/CPLD series: AMD, AMI, Atmel, Cypress, Gould, ICT, Lattice, National Semicond., Philips, STMicroelectronics, TI (TMS), Vantis, VLSI
  • FPGA: FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion
  • FPGA: Lattice: MachXO, LatticeXP, ispXPGA
  • FPGA: Xilinx: Spartan-3AN
  • Clocks: TI(TMS), Cypress
  • Special chips: Atmel Tire Pressure Monitoring ATA6285N, ATA6286N; PWM controllers: Zilker Labs, Analog Devices; Multi-Phase ICs: IR(Chil Semiconductor); Gamma buffers: AUO, Maxim, TI, ...
  • Microcontrollers MSC51 series: 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89Fxxx, 89LVxxx, 89LSxxx, 89LPxxx, 89Exxx, 89Lxxx, alle Hersteller, Philips LPC series
  • Microcontrollers Intel 196 series: 87C196 KB/KC/KD/KT/KR/...
  • Microcontrollers Atmel ARM. AT91SAM7Sxx, AT91SAM7Lxx, AT91SAM7Xxx, AT91SAM7XCxx, AT91SAM7SExx series;
  • Microcontrollers Atmel ARM9: AT91SAM9xxx series;
  • Microcontrollers ARM Cortex-M3: ATSAM3Axxx, ATSAM3Uxxx, ATSAM3Nxxx, ATSAM3Sxxx, ATSAMD20, ATSAM3Xxxx series
  • Microcontrollers ARM Cortex-M4: ATSAM4Sxxx series
  • Microcontrollers Atmel AVR 8bit/16bit: AT90Sxxxx, AT90pwm, AT90can, AT90usb, ATtiny, ATmega, ATxmega series
  • Microcontrollers Atmel AVR32: AT32UC3xxxx, ATUCxxxD3/D4/L3U/L4U series
  • Microcontrollers Chipcon (TI): CC11xx, CC24xx, CC25xx series
  • Microcontrollers Coreriver: Atom 1.0, MiDAS1.0, 1.1, 2.0, 2.1, 2.2, 3.0 series
  • Microcontrollers Cypress: CY7Cxxxxx, CY8Cxxxxx
  • Microcontrollers ELAN: EM78Pxxx
  • Microcontrollers EPSON: S1C17 series
  • Microcontrollers Explore Microelectronic: EPF01x, EPF02x series
  • Microcontrollers Generalplus: GPM8Fxxx series
  • Microcontrollers GreenPeak: GPxxx series
  • Microcontrollers Infineon(Siemens): XC800, C500, XC166, C166 series
  • Microcontrollers MDT 1xxx und 2xxx series
  • Microcontrollers Megawin: MG87xxx, MPC82xxx series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx, dsPIC, PIC32xxx series
  • Microcontrollers Motorola/Freescale: HC05, HC08, HC11, HC12, HCS08, RS08, S12, S12X, MC56F, MCF51, MCF52 series, Kinetis (K,L), Qorivva/5xxx Power Architecture
  • Microcontrollers Myson MTV2xx, 3xx, 4xx, 5xx, CS89xx series
  • Microcontrollers National: COP8xxx series
  • Microcontrollers NEC: uPD70Fxxx, uPD78Fxxx series
  • Microcontrollers Novatek: NT68xxx Serie
  • Microcontrollers Nordic Semiconductor: nRF24LExxx, nRF24LUxxx, nRF315xx, nRF51xxx Flash and OTP series
  • Microcontrollers Nuvoton (Winbond): N79xxx, W77xxx, W78xxx, W79xxx, W83xxx series
  • Microcontrollers Nuvoton (Winbond): N79xxx, W77xxx, W78xxx, W79xxx, W83xxx series
  • Microcontrollers NXP ARM Cortex-M3: LPC13xx, LPC17xx series
  • Microcontrollers NXP (Philips) ARM Cortex-Mx: LPC11xx, LPC11Cxx, LPC11Dxx, LPC11Uxx, LPC12xx, LPC12Dxx, LPC13xx, LPC17xx, LPC11Axx, LPC11Exx, LPC11xxLV, LPC18xx, LPC43xx, LPC8xx, EM7xx, series
  • Microcontrollers NXP (Philips) UOC series: UOCIII, UOC-TOP, UOC-Fighter (TDA1xxxx) series
  • Microcontrollers NXP (Philips) ARM7: LPC2xxx, MPT6xx, PCD807xx, SAF7780xxx series
  • Microcontrollers NXP (Philips) ARM9: LPC31xx series
  • Microcontrollers Pasat: TinyModule DIL40, DIL50 series
  • Microcontrollers Scenix (Ubicom): SXxxx series
  • Microcontrollers Syntek: STK6xxx series
  • Microcontrollers Renesas: R8C/Tiny series, uPD70Fxxx, uPD78Fxxx series, RL78 series, R32C series
  • Microcontrollers SyncMOS: SM59xxx, SM73xxx, SM79xxx, SM89xxx series
  • Microcontrollers & Programmable System Memory STMicroelectronics: uPSD, PSD series
  • Microcontrollers STM (ex SGS-Thomson): ST6xx, ST7xx, ST10xx, STR7xx, STR9xx, STM32F/L/W, STM8A/S/L series, SPC5 (Power Architecture)
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers Silicon Laboratories(Energy Micro): EFM32Gxx, EFM32GGxx, EFM32LGxx, EFM32TGxx, EFM32WGxx series
  • Microcontrollers Silicon Laboratories: SiM3Cxxx, SiM3Lxxx, SiM3Uxxx series
  • Microcontrollers Texas Instruments: MSP430 series, MSC12xx series, TMS320F series, CC430 series,
  • Microcontrollers Texas Instruments (ex Luminary Micro): LM3Sxxx, LM3Sxxxx series
  • Microcontrollers ZILOG: Z86/Z89xxx und Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx, ZGP323xxxxxx, ZLF645xxxxxxx, ZLP12840xxxxx, ZLP323xxxxxxx series
  • Microcontrollers other: EM Microelectronic, Spansion(Fujitsu), Goal Semiconductor, Hitachi, Holtek, Novatek, Macronix, Princeton, Winbond, Samsung, Toshiba, Mitsubishi, Realtek, M-Square, ASP, Coreriver, Gencore, EXODUS Microelectronic, Topro, TinyARM, VersaChips, SunplusIT, M-Square, QIXIN, Signetic, Tekmos, Weltrend, Amic, Cyrod Technologies, Ember, Ramtron, Nordic Semiconductor, Samsung, ABOV Semiconductor...

Programmer, through ISp connector

  • Serial E(E)PROM: IIC series, MW series, SPI series, KEELOQ series, PLD configuration Memories, UNI/O series
  • 1-Wire E(E)PROM: DS1xxx, DS2xxx
  • Serial Flash: standard SPI (25xxx), DataFlash (AT45Dxxx, AT26Dxxx)
  • Serial FRAM: Cypress(Ramtron): FM24xxxxxx, FM25xxxxxx, Fujitsu: MB85RCxxxx, MB85RSxxxx, Lapis(OKI, Rohm): MR44xxxxx, MR45xxxxx
  • Microcontrollers Atmel: AT89Cxxx, AT89Sxxx, AT89LSxxx, AT89LPxxx, AT90pwm, AT90can, AT90usb, AT90Sxxxx, ATtiny, ATmega, ATxmega series
  • Microcontrollers Atmel AVR32: AT32UC3xxxx, ATUCxxxD3/D4/L3U/L4U series
  • Microcontrollers Atmel ARM7: AT91SAM7Sxx, AT91SAM7Xxx, AT91SAM7XCxx, AT91SAM7SExx series;
  • Microcontrollers TI (Chipcon): CC11xx, CC24xx, CC25xx, CC85xx series
  • Microcontrollers Cypress: CY8C2xxxx
  • Microcontrollers Elan: EM78Pxxx, EM6xxx series
  • Microcontrollers EM Microelectronic: 4 und 8 bit series
  • Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17xxx, PIC18xxx, PIC24xxx, dsPIC, PIC32xxx series
  • Microcontrollers Mitsubishi: M16C
  • Microcontrollers Motorola/Freescale: HC08 (both 5-wire, All-wire), HC11, HC12, HCS08, S12, S12X, MC56F, MCF52, Kinetis K series
  • Microcontrollers Nordic Semiconductor: nRF24LExxx, nRF24LUxxx, nRF315xx Flash and OTP series
  • Microcontrollers NXP (Philips) ARM7: LPC2xxx, MPT6xx series
  • Microcontrollers NXP (Philips) ARM Cortex-Mx: LPC11xx, LPC11Cxx, LPC11Dxx, LPC11Uxx, LPC12xx, LPC12Dxx, LPC13xx, LPC17xx, LPC11Axx, LPC11Exx, LPC11xxLV, LPC18xx, LPC43xx, LPC8xx, EM7xx, series
  • Microcontrollers NEC: uPD7xxx series
  • Microcontrollers Philips (NXP): LPC1xxx, LPC2xxx, LPCxx series, 89xxx series
  • Microcontrollers Renesas: R8C/Tiny series, uPD7xxx series
  • Microcontrollers Realtek, M-Square
  • Microcontrollers Samsung: ICPZBSxxx series
  • Microcontrollers Scenix (Ubicom): SXxxx series
  • Microcontrollers Silicon Laboratories(Energy Micro): EFM32Gxx, EFM32GGxx, EFM32LGxx, EFM32TGxx, EFM32WGxx series
  • Microcontrollers STM (ex SGS-Thomson): ST6xx, ST7xx, ST10xx, STR7xx, STR9xx, STM32F/L/W, STM8A/S/L series, SPC5 (Power Architecture)
  • Microcontrollers Silicon Laboratories(Cygnal): C8051 series
  • Microcontrollers & Programmable System Memory STMicroelectronics: uPSD, PSD series
  • Microcontrollers TI: MSP430 series (both JTAG and BSL), MSC12xxx series, CC430 series, LM4F series, TM4C series
  • Microcontrollers ZILOG: Z8Fxxxx, Z8FMCxxxxx, Z16Fxxxx series, ZLF645x0xx
  • Various PLD (also with Jam/VME/SVF/STAPL/... Player/JTAG Support):
    Altera: MAX 3000A, MAX 7000A, MAX 7000B, MAX 7000S, MAX 9000, MAX II/G/Z
    Xilinx: XC9500, XC9500XL, XC9500XV, CoolRunner XPLA3, CoolRunner-II
  • PLD Lattice: ispGAL22xV10x, ispLSI1xxxEA, ispLSI2xxxE, ispLSI2xxxV, ispLSI2xxxVE, ispLSI2xxxVL, M4-xx/xx, M4LV-xx/xx, M4A3-xx/xx, M4A5-xx/xx, LC4xxxB/C/V/ZC/ZE, ispCLOCK, Power Manager/II,ProcessorPM
  • FPGA: Microsemi(Actel): ProASIC3, IGLOO, Fusion, ProASICplus, SmartFusion
  • FPGA: Lattice: MachXO, LatticeXP, ispXPGA

Notes: for all supported devices see actual DEVICE LIST

Identification of Manufacturer with Logos

I.C. Tester

  • TTL Type: 54,74 S/LS/ALS/H/HC/HCT series
  • CMOS Type: 4000, 4500 series
  • Static RAM: 6116 .. 624000
  • User definable test pattern generation

Package support

  • package support includes DIP, SDIP, PLCC, JLCC, SOIC, SOP, SSOP, PSOP, TSOP, TSOPII, TSSOP, QFP, PQFP, TQFP, VQFP, QFN (MLF), SON, BGA, EBGA, VFBGA, UBGA, FTBGA, LAP, CSP, SCSP, LQFP, MQFP, HVQFN, QLP, QIP and other
  • support devices in non-DIP packages up to 48 pins with universal adapters
  • supports devices with non DIL package with Adapter-Converter

Programmier speed

  • Note: It is important to say, we always use random numbers data pattern for programming speed testing. Some our competitors use "sparse" data pattern, where only few non-blank data are programmed or there are used data with only few 0 bits (FE, EF, etc.). This cheating approach can "decrease" programming time considerable. If you plan to compare, ask always which pattern they use.
  • The programming speed depends on PC speed only slightly.
Device Size [bits] Operation Time
K8P6415UQB (parallel NOR Flash) 400100hx16 (64 Mega) programming + verify 13 sec.
K9F1G08U0M (parallel NAND Flash) 8400000hx8 (1 Giga) programming + verify 122,7 sec.
QB25F640S33 (serial Flash) 800200hx8 (64 Mega) programming + verify 30,7 sec.
AT89C51RD2 (microcontroller) 10000hx8 programming + verify 14,4 sec.
PIC32MX360F512L (microcontroller) 80000hx8 programming + verify 8,9 sec.
Conditions: PC Pentium 4, 2.4 GHz, 512 MB RAM, USB 2.0 HS, Windows XP.

SOFTWARE

  • Algorithmen: only manufacturer approved or certified algorithms are used. Custom algorithms are available at additional cost.
  • Algorithmen updates: software updates are available regulary, approx. every 4 weeks, free of charge. OnDemand version of software is available for highly needed chips support and/or bugs fixes. Available nearly daily.
  • Main features: revision history, session logging, on-line help, device and algorithm information.

Device operations

  • standard:
  • intelligent device selection by device type, manufacturer or typed fragment of part name
  • automatic ID-based selection of EPROM/Flash EPROM
  • blank check, read, verify
  • program
  • erase
  • configuration and security bit program
  • illegal bit test
  • Konfiguration und "security bit program"
  • Illegal bit Test
  • checksum
  • Interpretiert die JAM standard Test- und Programmiersprache (STAPL), JEDEC Standard JESD-71
  • interprete the VME files compressed binary variation of SVF files
  • interprete the SVF files (Serial Vector Format)
  • interprete the Actel STAPL Player files
  • security
  • insertion test, reverse insertion check
  • contact check
  • ID byte check
  • special:
  • production mode (automatic start immediately after device insertion)
  • auto device serial number increment
  • statistic
  • count down mode

Buffer operations

  • view/edit, find/replace
  • fill/copy, move, byte swap, word/dword split
  • checksum (byte, word)
  • print

File load/save

  • no download time because programmer is PC controlled
  • automatic file type identification

Supported file formats

  • unformatted (raw) binary
  • HEX: Intel, Intel EXT, Motorola S-record, MOS, Exormax, Tektronix, ASCII-SPACE-HEX,, ASCII HEX
  • Altera POF, JEDEC (ver. 3.0.A), eg. from ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer ISDATA, etc.
  • JAM (JEDEC STAPL Format), JBC (Jam STAPL Byte Code), STAPL (STAPL File) JEDEC standard JESD-71
  • VME (ispVME file VME2.0/VME3.0)
  • SVF (Serial Vector Format revision E)
  • STP (Actel STAPL file)
 Back to top

GENERAL

PC system requirements

Common, software related requirements
Programmer hardware related requirements: either one USB port, 2.0 compatible or  one (parallel) printer port with nothing attached, the IEEE 1284 compatible printer port (ECP/EPP) on PCI bus recommended

Operations

  • operating voltage 110-240V AC rated, 90-264 VAC max., 47-63 H
  • power consumption max. 20W active, about 2W sleep
  • Abmessungen: 195L x 140B x 55H mm
  • dimensions 195L x 140W x 55H mm (7,7"L x 5,5"W x 2,2"H)icht: 0,9kg
  • weight (without external adapter) 0.9kg (1.98 lb)
  • temperature 5°C ÷ 40°C (41°F ÷ 104°F)
  • humidity 20%..80%, non condensing

Package includes

  • BeeProg2C programmer
  • power cord
  • connection cable PC-programmer, USB port
  • ISP-cabel
  • diagnostic POD for selftest of the programmer
  • diagnostic POD for ISP connector - for selftest of the ISP connector
  • anti-dust cover for ZIF socket
  • user manual (both on CD and printed form)
  • software
  • registration card
  • calibration test report
  • transport case (cadboard box)

Additonal service

  • Keep Current - ELNEC sends to user a latest version of programmer software and updated user documentation (Keep-Current package)
  • AlgOR - (Algorithm On Request) - add new supported devices on customer request

Prices:  BeeProg2C  € 815,97

Programmer price also includes

  • free technical support(hot line)
  • free life-time software via internet

The information in this document are subject to change without notice.

 Back to top
