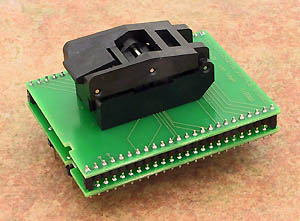

DIL48/TVSOP40 ZIF-CS 170mil
Order No.: 70-0455

universal adapter, assigned for devices in TVSOP package up to 48 pins (for example TI (TMS) MSP430 series)
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0455
Socket ZIF TVSOP48, ClamShell type
Bottom 2 rows, 2x24 pins, square, 0.6x0.6mm, row spacing 600mil
Class Universal
Subclass DIL/TSOP


Order no.: 70-0455
Price:        € 203,80

Converter manual

  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Open the converter ClamShell ZIF socket. Insert the device into it (place device on contacts). The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bezel or by any combination of them. If you use this adapter for devices with less than 40 pins, then place device to the bottom edge of adapter ClamShell ZIF socket. Upper contacts stay unconnected.
  • Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ClamShell ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ClamShell ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.
  • For handling with the device we recommended to use a vacuum pick up tool.

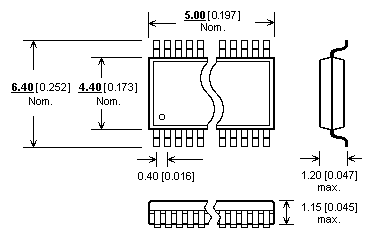

Accepted package(s)

TVSOP20
