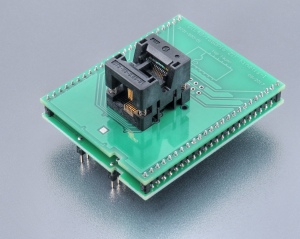

DIL48/TSSOP16 ZIF Kinetis-1
Order No.: 70-3231

special adapter, assigned for Freescale Kinetis E series in TSSOP16 package
operation (mechanical) life of ZIF socket - 10.000 actuations
supported from PG4UW software version 3.34i

Order no.: 70-3231
Price:        € 445,00

Converter manual

• IProtect the contacts of adapter connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  Usage of vacuum pick-up tool is expected for device handling.
  Proceed with care! Incorrect insertion of adapter in programmer ZIF socket or device in adapter ZIF socket may lead to programmed device damage.
• Insert adapter into programmer ZIF socket. If you are in doubts about orientation of the adapter in programmer ZIF socket, there is a rule of thumb - orientation of adapter name text is the same as orientation of the text on the top of programmer.
• Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
• Push the cover of adapter ZIF socket (the topmost movable part) to open the socket. Insert the device into adapter ZIF socket. Correct position of programmed device in adapter ZIF socket is indicated by picture near (usually on left above) the adapter ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned. Then release adapter ZIF socket.
• The cover must be fully actuated (depressed) before inserting a device into the socket. If device is inserted into only partially opened ZIF socket, then - after releasing of cover – device pins might get damaged.
  Do not press on device while inserting it and/or releasing the cover.
• Visually check the placement of programmed device in adapter ZIF socket. If everything looks OK, the device is ready for programming.
• To take out the device from adapter, push the cover of adapter ZIF socket and remove the device.
  When you finish the work with adapter, remove it from programmer ZIF socket.
• Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
• If programming yields isn't 100% when using programming adapter or if some unreliability appears, try to connect one 22nF-100nF multilayer capacitor (that meet the EIA X7R or Z5U specification) between leads of adapter connected to pins VCC and GND pins of programmed chip.
• For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

TSSOP16
