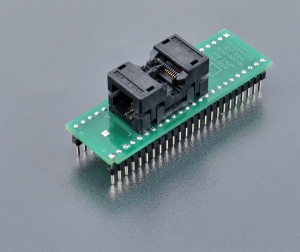

DIL48/TSSOP14 ZIF 170mil BQ-1
Order No.: 70-4132

specialized adapter for TI (TMS) BQ34Z100-G1 devices in TSSOP14 package
operation (mechanical) life of ZIF socket - 10.000 actuations
supported from PG4UW software version 3.27b

Ord. no. 70-4132
Socket ZIF TSSOP14, open top type
Bottom 2x24 pins, square, 0.6x0.6mm, rows spacing 600mil
Class Specialized
Subclass other

Order no.: 70-4132
Price:        €

Converter manual

  • Protect the contacts of adapters's connectors and ZIF socket from contamination. Any dirt and/or fat on contacts may cause errors during programming.
  • Usage of vacuum pick-up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert adapter into programmer's ZIF socket. If you are in doubts about orientation of the adapter in programmer's ZIF socket, there is a rule of thumb - orientation of adapter's name text is the same as orientation of the text on the top of programmer.
  • Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Push the top of adapter ZIF socket to open it. Insert the device into the adapter ZIF socket. The right position of the programmed device in adapter ZIF socket is show at picture near (mainly left above) the adapter ZIF socket. Then release adapter ZIF socket. If you use this adapter for devices with less than 16 pins, then place device to the bottom edge of adapter ZIFsocket. Upper contacts stay unconnected.
  • The cover must be fully actuated (depressed) before inserting a device into the socket. If device is inserted into only partially opened ZIF socket, then - after releasing of cover – device pins might get damaged.
  • Do not press on device while inserting it and/or releasing the cover.
  • Visually check the placement of programmed device in adapter's ZIF socket. If everything looks OK, the device is ready for programming.
  • To take out the device from adapter, push the cover of adapter's ZIF socket and remove the device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ZIF socket and remove device from it.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

TSSOP14
