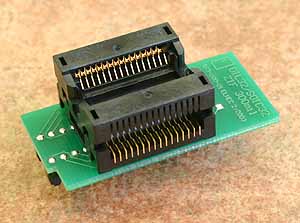

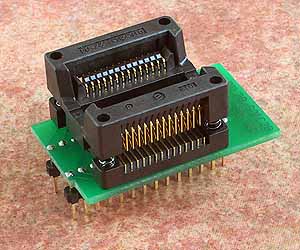

DIL32/SOIC32 ZIF 300mil
Order No.: 70-0183

universal adapter for SOIC devices with 32-pins (for example NVRAMs, Atmel AT90PWM series)
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0183
Socket ZIF SOIC32, open top type
Bottom 2 rows, 2x16 pins square, 0.6x0.6mm, row spacing 600mil
Class Universal
Subclass DIL/SOIC

Order no.: 70-0183
Price:        € 119,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • Insert adapter into programmer's ZIF socket. If you are in doubts about orientation of the adapter in programmer's ZIF socket, there is a rule of thumb - orientation of adapter's name text is the same as orientation of the text on the top of programmer.
  • Visually check the placement of adapter in programmer's ZIF socket.
  • Push the cover of adapter's ZIF socket (the topmost movable part) to open the socket. Insert the device into adapter's ZIF socket. Correct position of programmed device in adapter's ZIF socket is indicated by picture near (usually on left above) the adapter's ZIF socket. On that picture, reference corner of device (e.g. position of pin 1) is indicated by dot, by number 1, by bevelled corner or by any combination of mentioned. Then release adapter's ZIF socket.
  • Do not press on device while inserting it and/or releasing the cover.
  • Visual check interconnection between device and converter ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  •  To take out the device from adapter, push the cover of adapter's ZIF socket and remove the device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.
  • WARNING! Due to special construction of used ZIF socket, some SOIC32 300 mil chips don't fit into this adapter. Therefore we don't recommend to use this adapter for other chips as mentioned in the in the PG4UW software and/or in the device lists of Elnec programmers.

Accepted package(s)

SOIC32
