DIL8/SSOP8 ZIF-CS 110mil
Order No.: 70-0468

universal adapter, assigned for SSOP/MSOP devices up to 8 pins (e.g. serial EEPROMs)
operation (mechanical) life of ZIF socket - 10.000 actuations

Ord. no. 70-0468

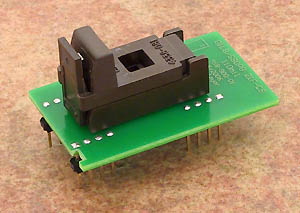

Socket ZIF SSOP8, ClamShell type
Bottom 2 rows, 2x4 pins (plus2x4 pins for improve stability) square, 0.6x0.6mm, row spacing 600mil
Class Universal
Subclass DIL/(T)SSOP


Order no.: 70-0468
Price:        € 249,00

Converter manual

  • Insert converter to the device programmer ZIF socket according to the picture placed near of it. If you have some doubts about orientation of this converter in device programmer ZIF socket, it is valid general rule, the orientation of the text of title is the same as the text on the top of the device programmer.
  • Open the converter ClamShell ZIF socket. Insert the device into it (place device on contacts). The right position of the programmed device in converter ZIF socket is show at picture near (mainly left above) the converter ZIF socket. On this picture reference corner (e.g. position of pin 1) of device is indicated by dot, by number 1, by bezel or by any combination of them.
  • Visual check interconnection between device and converter ClamShell ZIF socket. If everything looks OK, close it and now, device is ready for programming.
  • Be careful, because the incorrect insertion of converter to the device programmer ZIF socket or device to the converter ClamShell ZIF socket can damage the programmed device.
  • When you finish work with adapter, remove it from the device programmer ZIF socket.
  • To take out the device, open converter ClamShell ZIF socket and remove device from it.
  • When you finish work with converter, remove it from the programmer ZIF socket.
  • Do not directly touch the pins of the converter and converter ZIF socket, because dirt may cause errors during programming of device.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

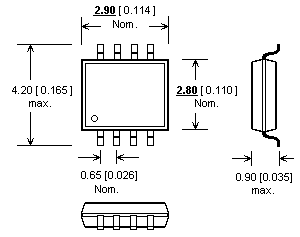

MSOP8
