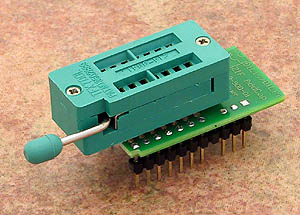

specialized 1:1 wired DIL/DIL adapter, designed to easy adding of bypass
capacitors for programming DIL devices on BeeHive4
adapter contains
soldering pads to connection of bypass capacitors included in adapter package
adapter package also contains 5 pieces of 100nF and 5 pieces of 100pF ceramics
capacitors
operation (mechanical) life of ZIF socket - 10.000 actuations
| Ord. no. |
70-0598 |
| Socket |
ZIF DIL14 |
| Bottom |
2 rows, 2x7 pins (plus 2x 3 pins
for improve stability), diameter 0.45mm, row spacing 300mil |
| Class |
Specialized |
| Subclass |
other |
|
|
|
Converter manual
- At first, solder capacitors
at bottom side of the adapter according to
information from PG4UW software, Device info window
- Insert adapter into programmer's ZIF socket. If
you are in doubts about orientation of the adapter
in programmer's ZIF socket, there is a rule of thumb
- orientation of adapter's name text is the same as
orientation of the text on the top of programmer.
- Open the adapter ZIF socket
by lever (lever is at upper position). Insert the
device into it according to the picture placed near
of it and close adapter ZIF socket by lever (lever
is at lower position).
- Visual check interconnection between device and
converter ZIF socket. If everything looks
OK, close it and now, device is ready for
programming.
- Be careful, because the
incorrect insertion of adapter to the device
programmer ZIF socket or device to the adapter ZIF
socket can damage the programmed device.
- To take out the device
from adapter, push the cover of adapter's ZIF socket
and remove the device.
- When you finish work with adapter, remove it from
the device programmer ZIF socket.
- Operation conditions: operating temperature 5°C
-
40°C (41°F - 104°F), operating humidity 20%...80%,
non condensing.
- For handling with the device we recommended to use a
vacuum pick up
tool.
