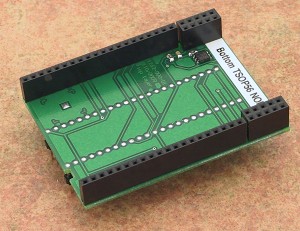

Bottom TSOP56 NOR-1
Order No.: 70-1262
bottom board of TSOP56 adapters, assigned for Flash devices with pinout
||2 rows, 2x24 pins, wire wrap
||2 rows, 2x24 pins square, 0.6x0.6mm, row spacing 600mil
Order no.: 70-1262
For work with TSOP56 device it is necessary put
together Bottom TSOP56 NOR-1 with Top TSOP56 ZIF board according the information provided by
The picture show, how to put together the Top TSOP56
ZIF and Bottom TSOP56-x boards to have complete
Insert comlete adapter to the device programmer ZIF
socket according to the picture placed near of it.
If you have some doubts about orientation of this
adapter in device programmer ZIF socket, it is valid
general rule, the orientation of the text of title
is the same as the text on the top of the device
Push the top of adapter ZIF socket to open it.
Insert the device into the adapter ZIF socket. The
right position of the programmed device in adapter
ZIF socket is show at picture near (mainly left
above) the adapter ZIF socket. Then release adapter
Visually check interconnection between device and
adapter ZIF socket. If everything looks OK, the
device is ready for programming.
Be careful, because the incorrect insertion of
adapter to the device programmer ZIF socket or
device to the adapter ZIF socket can damage the
To take out the device push the top of adapter ZIF
socket and remove device from it.
When you finish work with adapter, remove it from
the device programmer ZIF socket.
Do not directly touch the pins of the adapter and
adapter ZIF socket, because dirt may cause errors
during programming of device.
- Operation conditions: operating temperature 5°C
40°C (41°F - 104°F), operating humidity 20%...80%,
The information in this document are subject to
change without notice.
