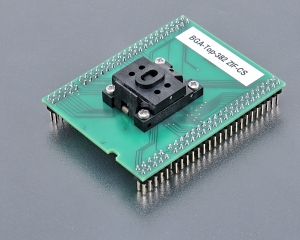

BGA-Top-382 ZIF-CS
Order No.: 70-3905

top board of BGA adapters
used ZIF socket may accept one or more variants of supported package, different in ball diameter, ball high and/or body thickness, see section Accepted Package(s)
operation (mechanical) life of ZIF socket - 500.000 actuations
supported from PG4UW software version 3.24n

Ord. no. 70-3905
Socket ZIF BGA81, ClamShell type
Bottom 2x25 pins square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top

Move the cursor over the picture for additional view

Order no.: 70-3905
Price:        € 795,00

Adapter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • For work with BGA device it is necessary put together BGA-Top-382 ZIF-CS  with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package



NAME

SYMBOL MIN NOM MAX

Profile

A 0.491 0.55 0.609

Ball Height

A1 0.17 - 0.23

Body Thickness

A2 0.344 - 0.356

Ball Diameter

b 0.23 - 0.29

Body Size

D - 4.355 -

Body Size

E - 4.275 -

Ball Pitch

e - 0.4 -

Ball Array D

GD - 9 -

Ball Array E

GE - 9 -


  Back to top

The information in this document are subject to change without notice.
