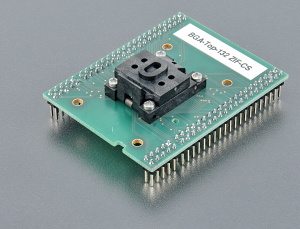

BGA-Top-132 ZIF-CS
Order No.: 70-0724

top board of BGA adapters
used ZIF socket accepts many variants of supported package, different in ball diameter, ball high and/or body thickness, see section Accepted package(s)
operation (mechanical) life of ZIF socket - 500.000 actuations

Ord. no. 70-0724
Socket ZIF BGA80 (depopulated array of (64) spring probes), ClamShell type
Bottom 4 rows, 4x25 pins square, 0.6x0.6mm
Class BGA/LGA
Subclass BGA-Top

Move the cursor over the picture for additional view

Order no.: 70-0724
Price:        € 450,00

Adapter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • Usage of vacuum pick up tool is expected for device handling.
  • Proceed with care! Incorrect insertion of adapter in programmer's ZIF socket or device in adapter's ZIF socket may lead to programmed device damage.
  • For work with BGA device it is necessary put together BGA-Top-132 ZIF-CS with some BGA-Bottom-x board according to the information provided by PG4UW software.
  • The picture show, how to put together the BGA-Top-x ZIF-CS and BGA-Bottom-x boards to have complete BGA adapter.
  • Operation conditions: operating temperature 5°C ÷ 40°C (41°F ÷ 104°F), operating humidity 20%...80%, non condensing.
  • For handling with the device we recommended to use a vacuum pick up tool.

Accepted package(s)

BGA package



NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.4

Ball Height

A1 0.4 - -

Body Thickness

A2 0.6 - -

Ball Diameter

b 0.5 0.6 0.7

Body Size

D - 13. -

Body Size

E - 11 -

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -

NAME

SYMBOL MIN NOM MAX

Profile

A 1.1 1.2 1.3

Ball Height

A1 0.45 0.5 0.55

Body Thickness

A2 - - -

Ball Diameter

b - 0.6 -

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.4

Ball Height

A1 0.43 0.48 0.53

Body Thickness

A2 - 0.8 -

Ball Diameter

b 0.55 - 0.65

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.4

Ball Height

A1 0.4 0.5 0.6

Body Thickness

A2 0.6 0.66 0.76

Ball Diameter

b 0.5 0.6 0.7

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.4

Ball Height

A1 0.4 0.5 0.6

Body Thickness

A2 0.65 - -

Ball Diameter

b 0.5 0.6 0.7

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -

NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.4

Ball Height

A1 0.4 0.49 -

Body Thickness

A2 - 0.8 -

Ball Diameter

b 0.55 0.6 0.65

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -

NAME

SYMBOL MIN NOM MAX

Profile

A 1.1 1.2 1.3

Ball Height

A1 0.45 0.5 0.55

Body Thickness

A2 - - -

Ball Diameter

b 0.57 0.62 0.67

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -


NAME

SYMBOL MIN NOM MAX

Profile

A - - 1.4

Ball Height

A1 0.4 0.49 -

Body Thickness

A2 0.65 - -

Ball Diameter

b 0.45 0.55 0.65

Body Size

D 12.9 13 13.1

Body Size

E 10.9 11 11.1

Ball Pitch

e - 1 -

Ball Array D

GD - 8 -

Ball Array E

GE - 8 -
