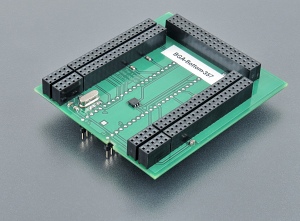

BGA-Bottom-357
Order No.: 70-3391

bottom board of BGA adapters, assigned for Analog Devices ADUCM320 devices in matrix 11x11
supported from PG4UW software version 3.13j

Ord. no. 70-3391
Socket 8x25+3x20 socket forwire wrap pins
Bottom 2 rows, 2x24 pins square, 0.6x0.6mm,  row spacing 600mil
Class BGA/LGA
Subclass BGA-Bottom

Order no.: 70-3391
Price:        € 130,00

Converter manual

  • Protect the pins of adapter and adapter's ZIF socket from contamination. Don't touch the pins with bare hands. Any dirt and/or fat may cause errors during programming.
  • For work with BGA device it is necessary put together BGA-Bottom-357 with some BGA-Top-x board according the information provided by PG4UW software.
  • Operation conditions: operating temperature 5°C - 40°C (41°F - 104°F), operating humidity 20%...80%, non condensing.
