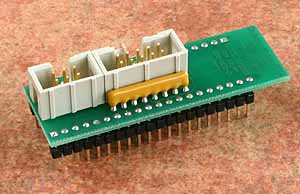

ISP Diagnostic POD
Diagnostic POD for ISP Connectors



  • enables self-diagnostic of ISP connectors and ISP cables of Elnec programmers (similar to selftest+ of ZIF socket)
  • optional accessories for programmers with 6-pin and 10-pin ISP connector:
    • BeeProg
    • PIKprog+
    • SmartProg
    • T51prog

    Order no.: 70-0208
    Price:        € 29,00

    Documentation

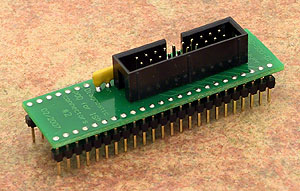

ISP Diagnostic POD 2
Diagnostic POD for ISP Connectors

Diagnostic pod for ISP connectors #2



  • enables self-diagnostic of ISP connectors and ISP cables of Elnec device programmers (similar to selftest+ of ZIF socket)
  • standard accessories for device programmers with 20-pin ISP connector:
    • BeeProg+/BeeProg2/BeeProg2C
    • BeeHive4+/BeeHive204
    • BeeHive8S/BeeHive208S,...

    Order no.: 70-0680
    Price:        € 29,00

    Documentation

Diagnostic PODs

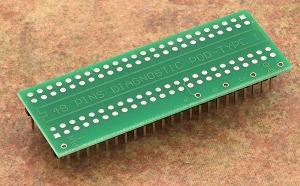

48 Pin Diagnostic POD Type 1

48 Pins diagnostic pod - Type I



  • enables execute selftest+ for Elnec device programmers with 48 pins ZIF socket
  • standard accessories for device programmers:
    • BeeProg+/BeeProg2/BeeProg2C
    • BeeHive4+/BeeHive204
    • BeeHive8S/BeeHive208S,...

    Order no.: KKA-0222
    Price:        € 13,00

    Documentation

Diagnostic PODs

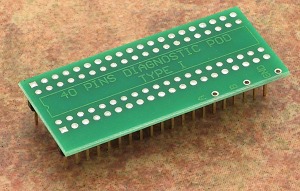

40 Pin Diagnostic POD Type 1

40 Pins Diagnostic pod - Type I



  • enables execute selftest+ for Elnec device programmers with 40 pins ZIF socket
  • standard accessories for device programmers:
    • BeeProg
    • PIKprog+
    • SmartProg
    • T51prog
  • Order no.: KKA-0226
    Price:        € 13,00

    Documentation

Testing PODs

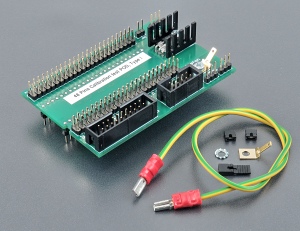

48 Pin Calibration Test POD, Type 1

48 Pins Calibration test pod, Type I



  • testing calibration status of 48-pin universal programmers and multiprogrammers
  • precise voltmeter (multimeter) required
  • content included in the package:
    • The 48 Pins Calibration POD, Type I
    • Faston and toothed lock washer for the programmer's earthing point

    Order no.: 70-0438
    Price:        € 69,00

  • Documentation

AP1 Testing PODs

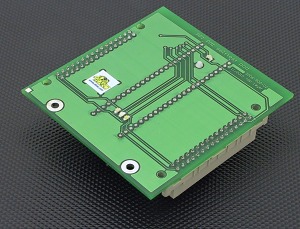

AP1 PMI Selftest POD

AP1 PMI selftest pod



  • testing calibration status of 48-pin production programmers and multiprogrammers
  • standard accessories for device programmers:
    • BeeProg2AP
    • BeeHive204AP
    • BeeHive204AP-AU

    Order no.: 71-2006
    Price:        € 47,00

AP1 Testing PODs

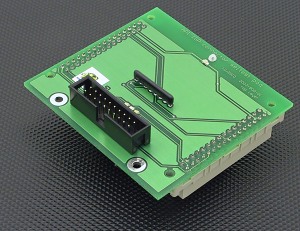

AP1 ISP Selftest POD

AP1 ISP connector selftest pod



  • enables self-diagnostic of ISP connectors and ISP cables of Elnec device programmers (similar to selftest+ of ZIF socket)
  • standard accessories for device programmers:
    • BeeProg2AP
    • BeeHive204AP
    • BeeHive204AP-AU

    Order no.: 71-2007
    Price:        € 37,00

AP1 Testing PODs

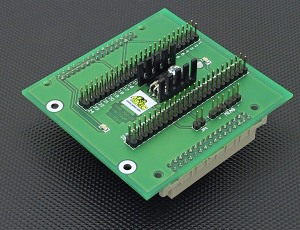

AP1 Calibration Test POD

AP1 calibration test pod



  • testing calibration status of 48-pin production programmers and multiprogrammers
  • standard accessories for device programmers:
    • BeeHive204AP
    • BeeHive204AP-AU

    Order no.: 71-2008
    Price:        € 50,00

AP3 Testing PODs

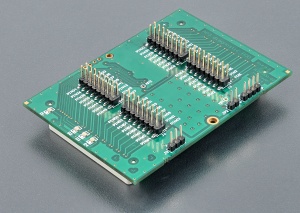

AP3 Diagnostic POD

AP1 calibration test pod



  • diagnostic pod for selftest of the programmer and testing calibration status
  • standard accessories for device programmers:
    • BeeProg3
    • BeeHive304

    Order no.: 73-3128
    Price:        € 37,00

    Documentation

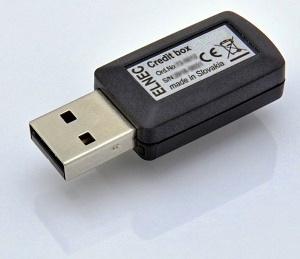

Credit Box
Credit Box CB-25k

Credit box CB-25k



  • accessory for special devices programming by Elnec programmers
  • carry 25.000 credits
  • value of one credit: US $0.01
  • validity: 10 versions of software - can be used after activation (first usage) by current and by next 9 consecutive regular versions of software

    Order no.: 72-0011
    Price:        € 227,00

    Manual



Credit Box
Credit Box CB-100k

Credit box CB-25k



  • accessory for special devices programming by Elnec programmers
  • carry 100.000 credits
  • value of one credit: US $0.006
  • validity: 10 versions of software - can be used after activation (first usage) by current and by next 9 consecutive regular versions of software
  • Order no.: 72-0012
    Price:        € 545,00

    Manual

Credit Box
Credit Box CB-500k

Credit box CB-25k



  • accessory for special devices programming by Elnec programmers
  • carry 500.000 credits
  • value of one credit: US $0.003
  • validity: 10 versions of software - can be used after activation (first usage) by current and by next 9 consecutive regular versions of software
  • Order no.: 72-0013
    Price:        € 1364,00

    Manual

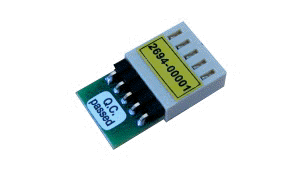

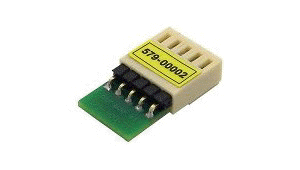

Upgrade Kit Beeprog2C to BeeProgProg2

BeeProg2C to BeeProg2 upgrade kit



Upgrade Kit Xprog2 to SmartProg2

Xprog2 to SmartProg2 upgrade kit



Module 2708



  • Programming EPROMs 2708 series and EPROMs TMS2716 series.
  • For PREPROM-02aLV, MEMprog, SmartProg and LabProg-48LV/LabProg+JetProg, BeeProg, BeeProg+, BeeProg2 programmers.
  • The power supply from the standard delivery is not sufficient for programming of 2708 EPROMs using 2708 module. Therefore use more powerful power supply (12- 17VDC/750mA, center minus), e.g. Power supply adapter 15V/1A (ord.no. KIN-0315).

    Order no.: 70-0059
    Price:        € 106,90

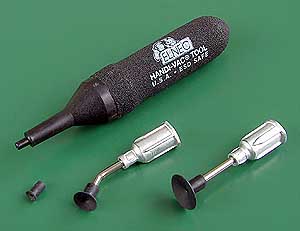

Vacuum Handling Tool Kit



  • Hand-held vacuum SMD picker with straight and bent tips with suction cups easy and reliable tool for handling devices without damaging leads prevents static shock that could damage devices.
  • Prevents package contamination made from soft ESD-safe conductive silicone using: squeeze the vacuum bulb.
  • Place the suction cup on the part to be picked up, then release your squeeze parts included in the set:
    • 1x vacuum pen
    • 3x rubber cups (small, medium, large)
    • clear plastic carrying case to prevent damage or contamination of the pen and its components

    Order no.: NRU-0083
    Price:        € 15,50

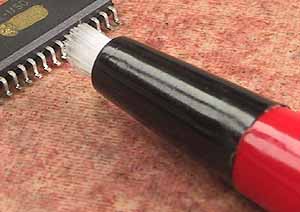

Fiberglass Pen



  • Ideal for digging out dirt and oxide layer from the chip legs
  • Useable also for cleaning PCB printed circuit boards before soldering
  • Not very recommended to use for ZIF sockets cleaning, because very abrasive function can damage tiny contact layer elektrostatic neutral material refills available

    Order no.: NRU-0085
    Price:        € 6,70

PLCC Extractor



  • Simple tool for extracting of devices in PLCC sockets
  • Order no.: NRU-0002
    Price:        € 5,20


The information in this document are subject to change without notice.
